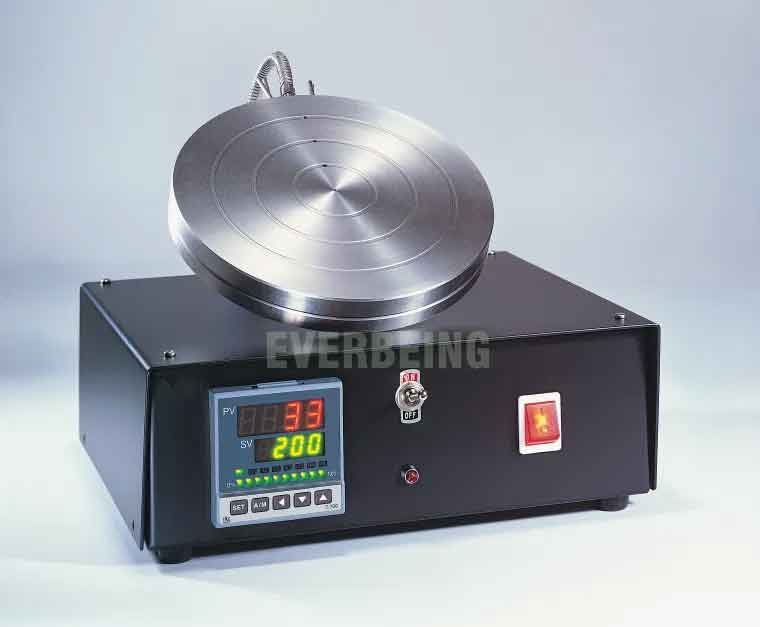

Our hot chucks are capable of heating your device under test up to 700°C. Our selection ranges depending on chuck size and maximum required temperature for your experiments.
Features include:
- Chuck size of: 2″, 4″, 6″, 8″, 12″
- Temperature range from 100, 150, 200, 300, 400, 500, 600, 700
- Temperature accuracy of +/- 0.5°C
- Stainless steel chuck
| Input Capacitance | 0.1pf |
| Input Resistance | 1.0 megohm |
| Rise/Fall Time | 0.8ns |
| Bandwidth | dc to 500 MHz |
| Linearity | 0.5% |
| Voltage Range | -10 to +20V* |
| Gain Accuracy | ±3% |
| Signal Attenuation | (High Input impedance oscilloscope: 10 to1) (50 ohm input: 20 to 1) |
| Calibration Substrate | Pad Size (microns) | Calibration Types Supported | Footprint | Pitch Range Recommended (microns) | Pitch Range Acceptable (microns) |
|---|---|---|---|---|---|
| CS-15 | 25 X 25 | SOLT, LRL, LRM | GSG | 40 – 150 (SOLT) 30 – 150 (LRL) |
40 – 150 |
